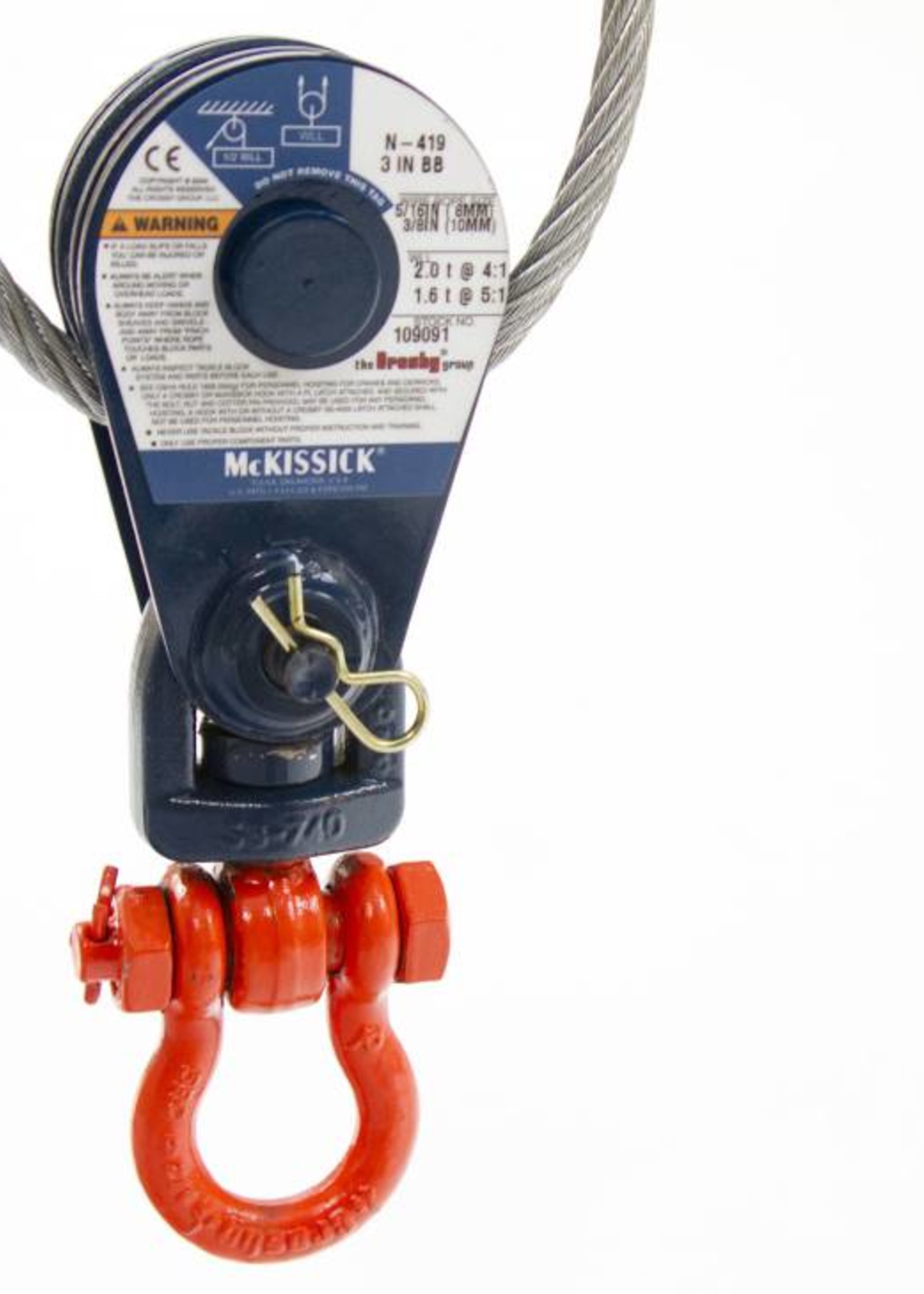

The 419 Snatch Block with Shackle offers a nut and bolt style shackle for the utmost in security but with easy interchangeability. In addition the screw pin face plate allows that rope to be inserted while the block is suspended from a gin-pole yet without compromising strength.

*image is a representation, actual item and marking will differ based on sheave diameter/rope capacity, size refers to the diameter of wire rope that will fit in the valley of the sheave*

Specifications:

• Forged steel swivel tees, yokes and shackles
• Furnished with bronze bushings
• Opening feature permits insertion of rope while block is suspended from gin-pole
• 3” thru 18” 418 and 419 blocks have exclusive bolt retaining spring to assure no lost bolts
• Pressure lube fittings
• 3” - 10” feature dual rated wireline sheaves
• Fatigue rated
• 3/8" - 1/2" wire rope compatible block is RFID EQUIPPED
• Meets or exceeds all requirements of ASME B3026 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these blocks meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B3026
